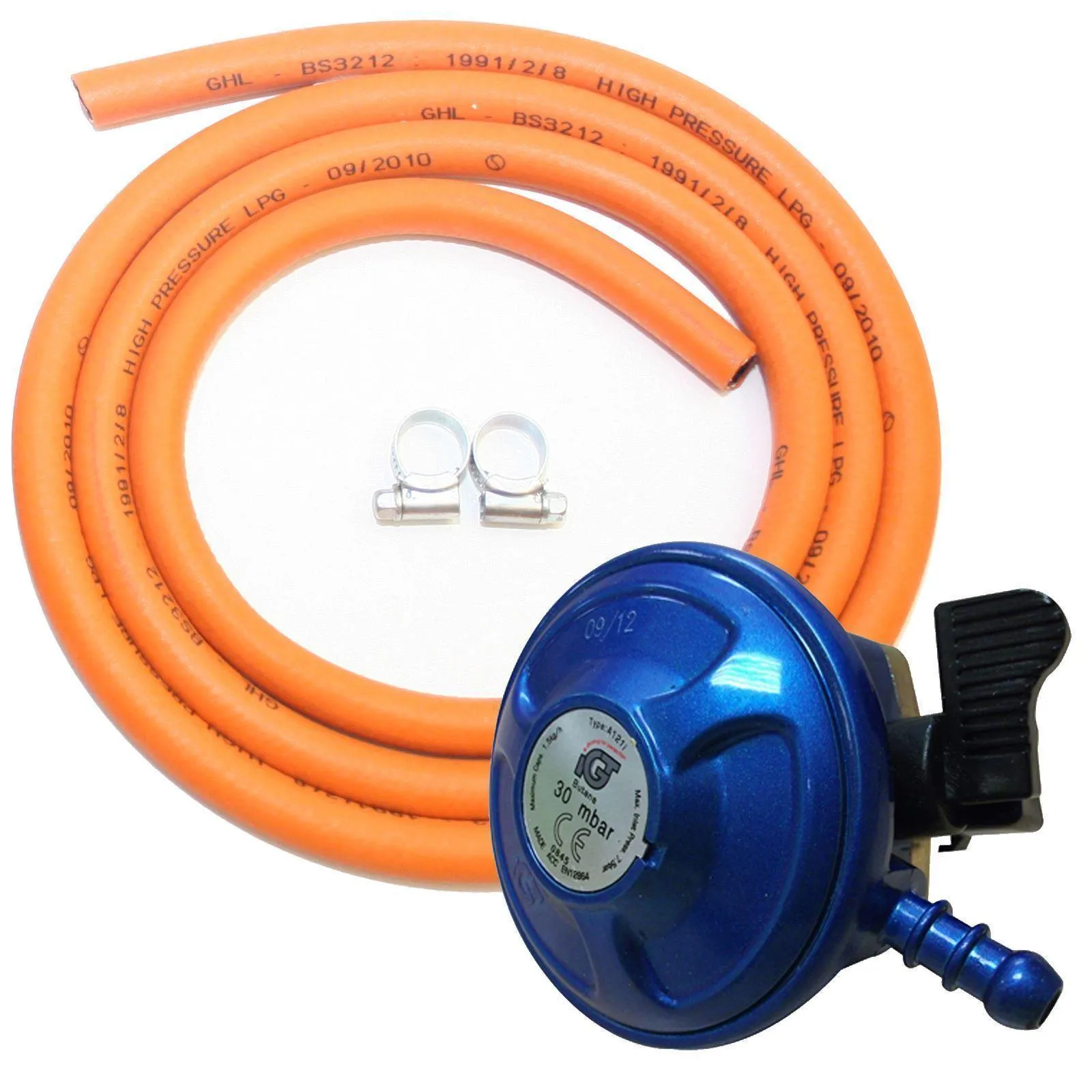

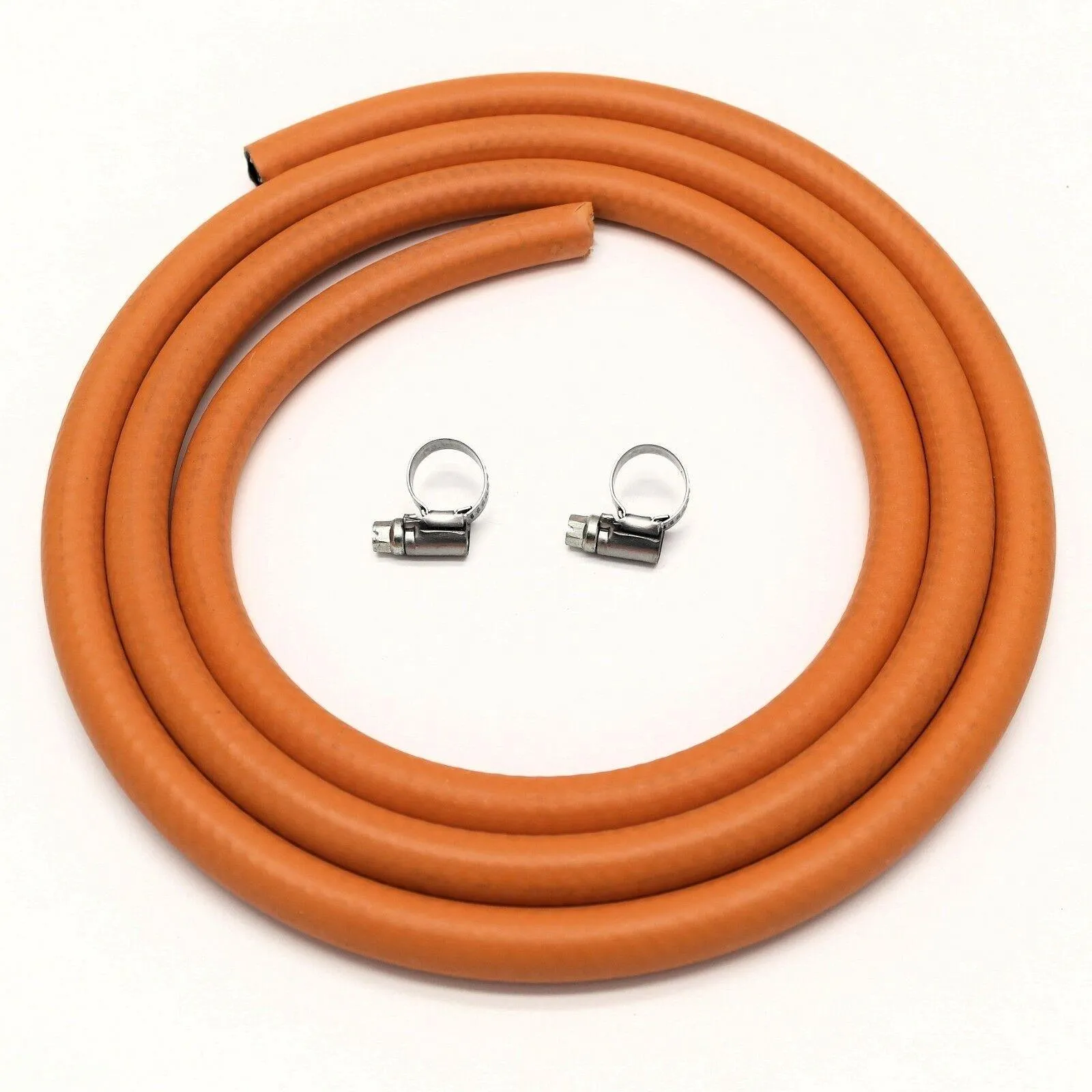

2 metres of High Pressure Gas hose and Compact Low Pressure Regulator

Technical information:

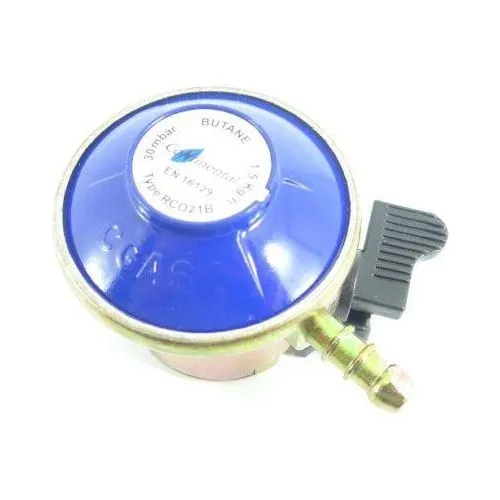

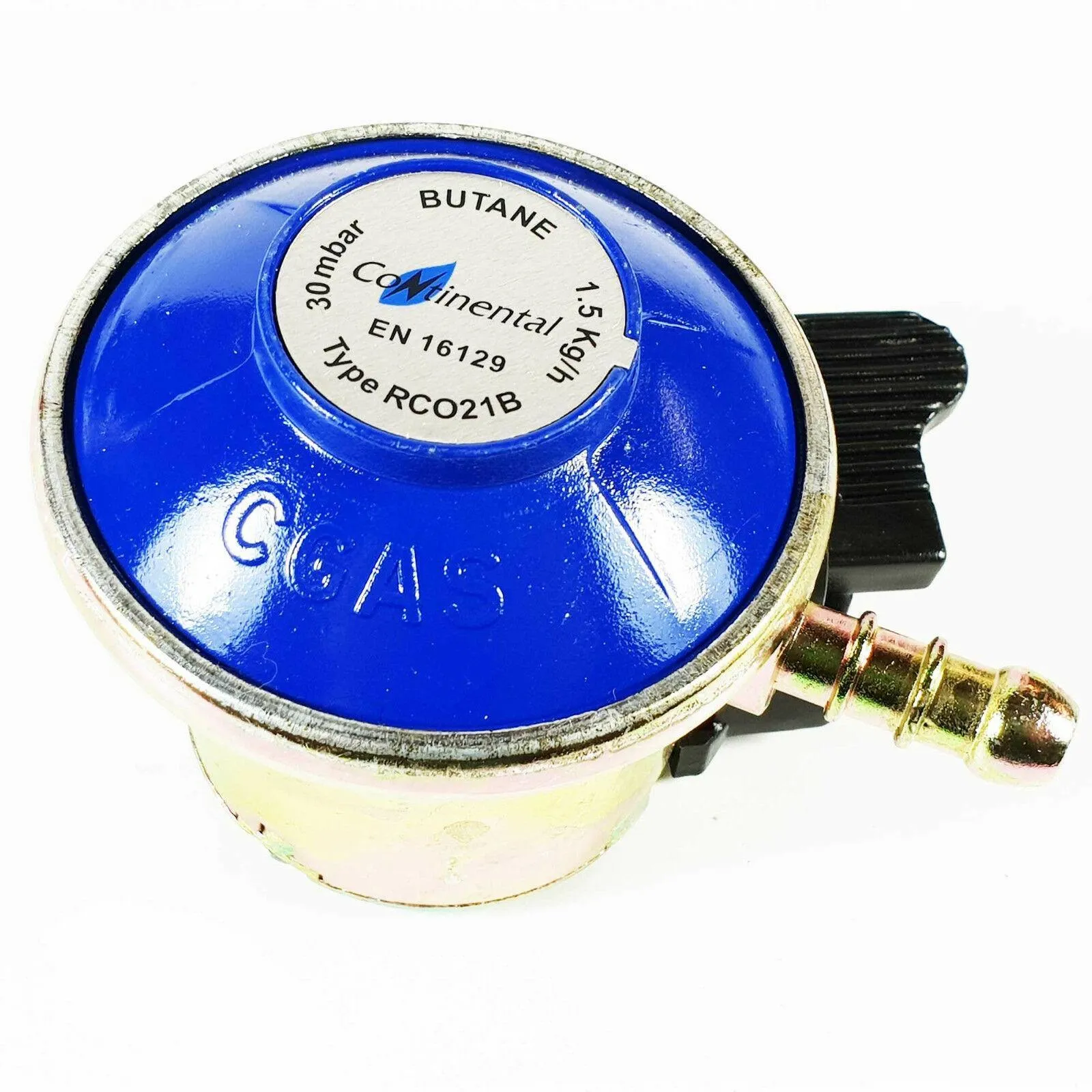

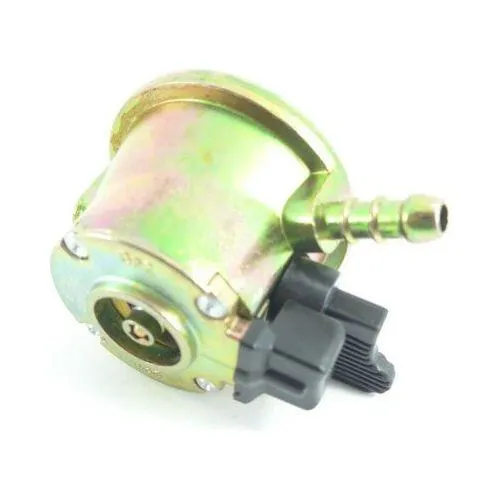

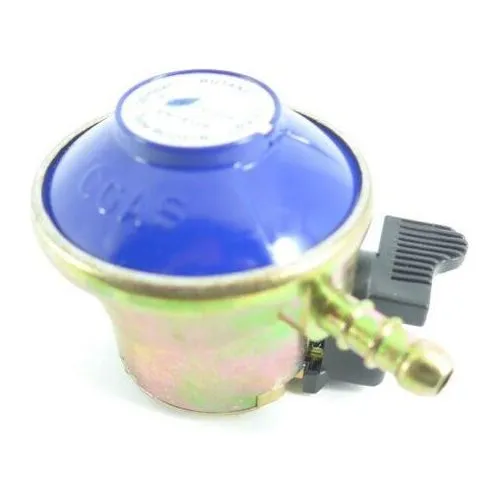

This is a single stage 21mm push fit butane gas regulator preset to 28mbar to EN12864 and hose to fit, the regulator is only suitable for gas bottles with the following type of fitting:

How to connect 7kg, 12kg and 15kg Butane gas bottles, hese cylinders have a 21mm valve and should only be used with 21mm regulators. Remove the orange dust cap by pulling the lanyard out, and then upwards, avoid using tools for this, and just leave the cap hanging. Check that the black sealing washer is fitted inside the cylinder valve make sure the regulator switch is in the disconnect position (3 o’clock position) Fit the 21mm regulator as the manufacturer’s instructions suggest. When you need to use gas, turn the switch anticlockwise to the ‘on’ position.

IMPORTANT

If the regulator on/off switch gets stuck when turning the supply on, it means the regulator has not been connected correctly. If this happens, disconnect it and follow the instructions to reconnect it.

How to disconnect 7kg, 12kg and 15kg Butane gas bottles, turn the regulator switch clockwise to the off position emove the 21mm regulator as the manufacturer’s instructions suggest. Replace the orange safety cap onto the empty bottle valve Weight: 190gr Please check our other listings for the different types of regulators
